NLP Covid-19 Sentiment Pipeline
For our final project at Zip Code Wilmington, we chose to view sentiment analysis on COVID-19 for two different sources; Articles from a News API and Tweets from Twitter’s API. For the news api we will be using Airflow to gather new articles every hour regarding COVID-19. For the Twitter API we have used Kafka to produce a stream of all tweets regarding COVID-19.
After acquiring this data we run it through a Vader model to analyze sentiment of both the media and tweets. Then store it in a SQL database. Using airflow we will continuously clean the data and show our results using various visualization tools. Check out our pipeline below.

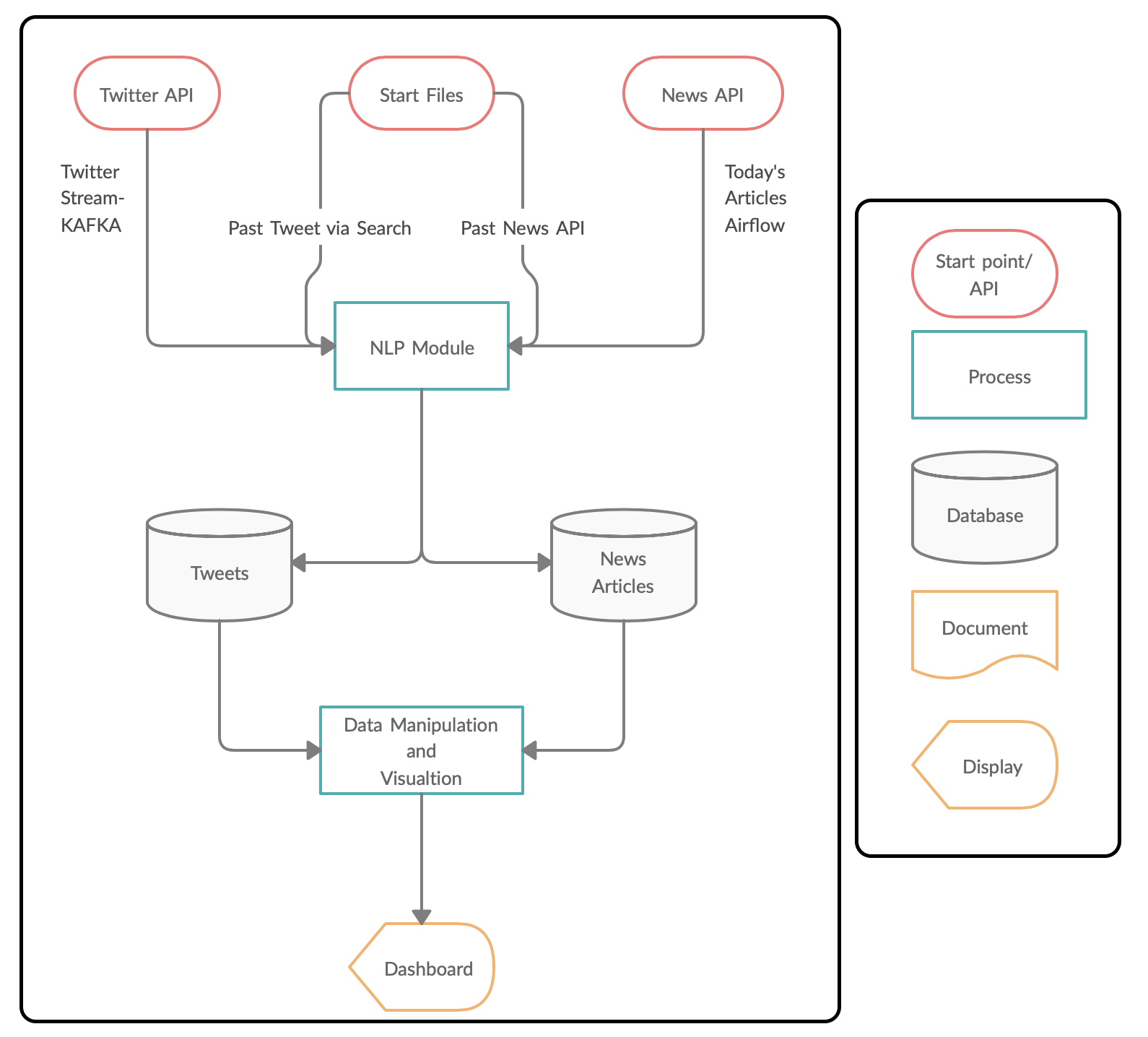

Pipeline Flow
Meet the team
Apoorva Shukla
- “Data Engineer in training with a passion for problem solving and learning new skills. Highly organized in handling multiple task in competitive environment.”
James Kocher
- “Being the “Excel guy” in the office, I decided to take my skills to the next level and become the “data guy” when I enrolled in Zip Code Wilmington’s first ever Data Engineering cohort. Since then, I have been sharpening my skills in Python and MySQL and applying my creative and analytical mindset as I aspire to become a successful data engineer.”
James Thompson
- “Studied pyshics and math at Lincoln University. Previously worked in the Architectural Engineering and Construction (AEC) Industry as a Building Information Modeling Designer, doing value engineering by using Autodesk programs to create 3D models. Strong problem-solving skills and passionate about automating solutions using code.”
APIs Used
Frameworks Used
- Kafka
- Spark
- Airflow
- PANDAS
- Plotly Dash
Where to start
To run this program we ask you execute the follow steps.
-Set up a dotenv file with the approriate keys for News API and Twitter API
-Change your directory to StartFile and run the follow commands on your command line:
- “mysql -u username -p < TwitterSetup.sql”
- “mysql -u username -p < NewsSetup.sql”
- “python start.py”
-From the airflow_dag directory add the file “final_project_dag.py” to your airflow home in the dags folder as well as set up your dotenv file in the same folder. Start airflow webserver and scheduler and turn on the final_project_dag.
-Change directory to the twitter_kafka folder and start running your kafka zookeeper and server. After that run both conusmer.py and producer.py simultaneously
-Open the visualation software and watch as results poor in on national sentiment towards COVID-19.
